Pinacol Rearrangement

Pinacol rearrangement is a specific elimination reaction that vicinal diols go through in acidic conditions. Unlike a typical E1 reaction that gives you an alkene, the pinacol rearrangement gives you an aldehyde or a ketone instead. Here’s the general scheme for the reaction:

general scheme of the pinacol rearrangement

As you can see, the pinacol rearrangement also causes the carbon backbone change (hence, the rearrangement). This occurs via a carbocation intermediate.

Let’s look at the details of the mechanism of this reaction. It starts like any E1 of alcohols with the protonation of one of the hydroxyl groups (-OH) to form a leaving group (H2O).

mechanism of the pinacol rearrangement

Once the leaving group dissociates to give you a carbocation, you’ll see that no matter how stable this carbocation is, it will tend to rearrange to give a new resonancely stabilized cationic species with the C=O double bond. We know that tertiary carbocations are comparatively stable, right? Well, when it comes to the C=O bond, it’s adds a ton of stability of the intermediate. I’m not gonna bore you with numbers here, just trust me on that. So long story short, the carbocationic rearrangement is driven by this additional stability.

BTW, you may also come across the name pinacolone rearrangement. This is because the name of the product of the pinacol rearrangement (with the actual pinacol as the starting material) is pinacolone. So the both names are kind of interchangeable.

Competing Groups in the Carbocation Rearrangement

So, what do we do when we have different groups competing for the same shift in the rearrangement? Just like in a typical carbocation rearrangement, we have certain migratory aptitudes.

migratory aptitude in carbocationic rearrangements

The pinacol rearrangement is not special in any way or form from any other rearrangement involving carbocations. So, our migratory aptitude stays the same: H migrates the easiest, then we have the Ph group, and then we have alkyl groups.

For instance, here’s the example when you have H and -CH3 competing in the rearrangement.

competition between the migrating groups 1

Likewise, here’s the example with the -Ph and -CH3 competition:

competition between the migrating groups 2

Notice, that while the product with a conjugated C=O and Ph (adjacent to each other) may be more thermodynamically stable at the end, this is still not the major product. When dealing with the pinacol rearrangement always remember the mechanism and the migratory ability and don’t pay attention to the stability of the final product.

Pinacol Rearrangement in Asymmetrical Diols

Alright, now when we know the details of the pinacol rearrangement mechanism, let’s look at more complicated cases. Fist, how to approach questions with asymmetrical diols? Consider the following:

asymmetrical pinacol rearrangement carbocation formation

The trick is to consider the nature of the carbocation you’re going to get once the leaving group leaves. Since anything that can be protonated, will get protonated, it’s pointless to analyze the molecule from the perspective of the starting material itself. However, once you form the carbocation, you can see the differences.

In the example above, we have a typical tertiary (3°) carbocation vs the resonancely stabilized benzylic carbocation. Since the resonance stabilizes carbocations better than induction or hyperconjugation, the benzylic carbocation is way more stable than even the tertiary one. And since the more stable intermediates have lower activation energies leading to their formation, they form faster. So, while anything can be protonated in the solution, the H2O leaving group will dissociate easier from whatever carbon that can give you a more stable carbocation. Thus, the rest of the mechanism for the reaction above will look like this:

asymmetrical diol pinacol rearrangement example

Again, although the product with C=O adjacent to Ph (resulting from the less stable carbocation) would be thermodynamically more stable, it doesn’t form.

Pinacol Rearrangement Practice Questions

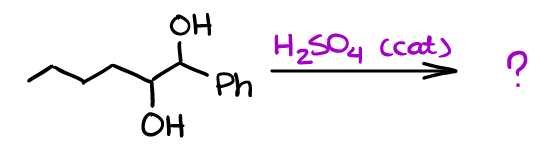

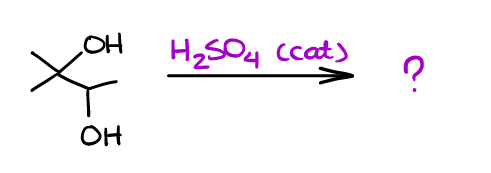

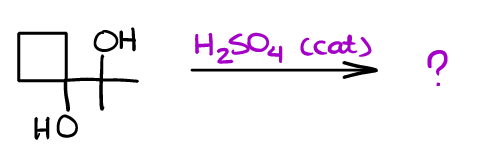

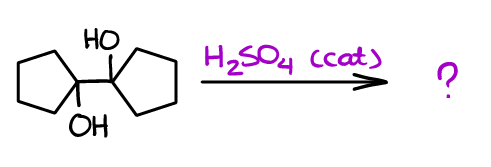

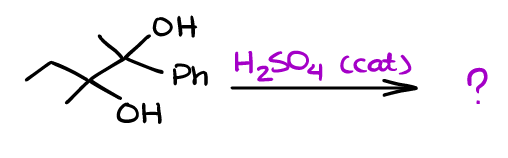

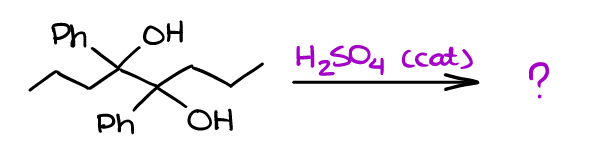

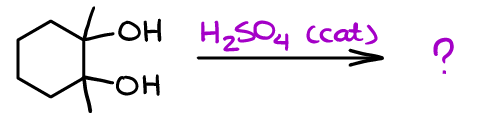

Alright, now when you know the ins and outs of this reaction, how about looking at some practice questions? Predict the products in each of the following reactions:

Question 1

Question 2

Question 3

Question 4

Question 5

Question 6

Question 7

Do you want to learn more and get a ton of practice questions with instant feedback? Then check out my
Organic Chemistry Course!

2 thoughts on “Pinacol Rearrangement”

    1. Not only diols. Epoxides can do something similar too.
      Once you initiate certain reaction, it’s going to evolve via best pathway possible, which happens to be the said rearrangement for vicinal diols. Classic pinacol rearrangement is with diols, however, similar rearrangements exist for other functional groups as well.
